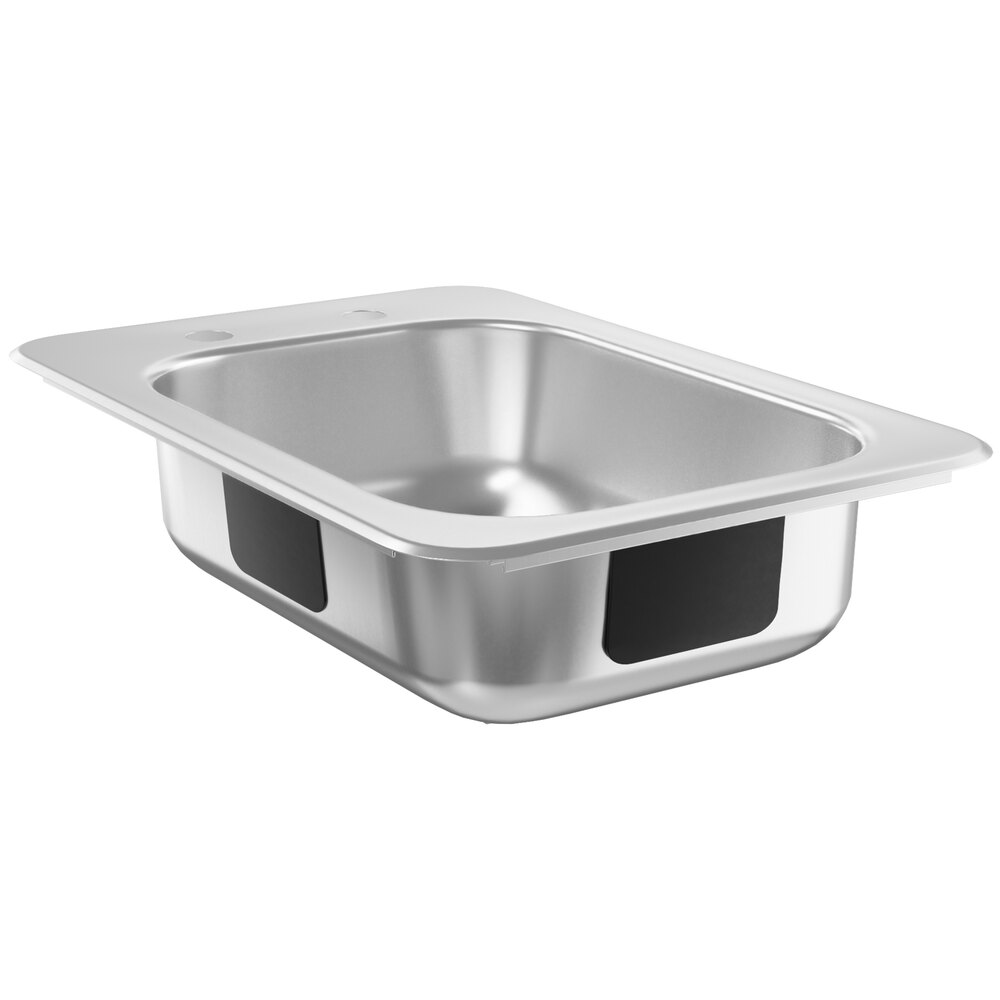

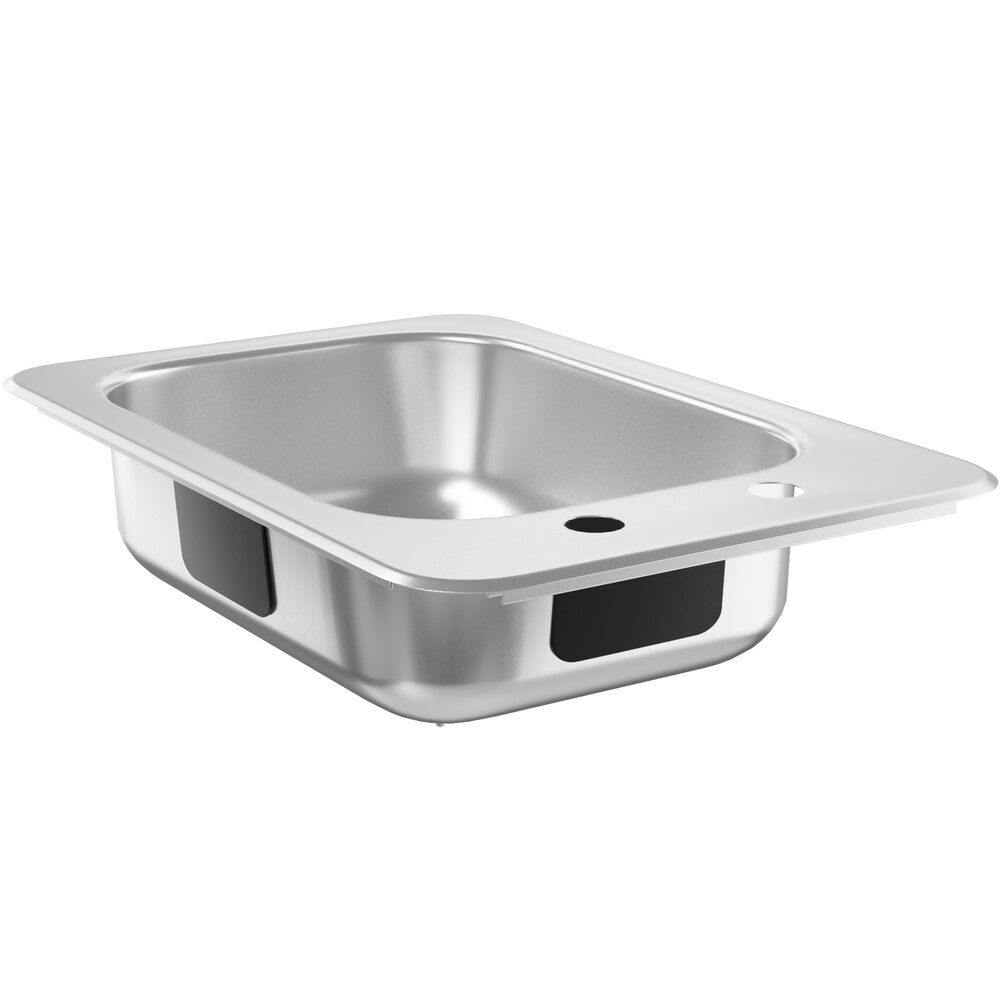

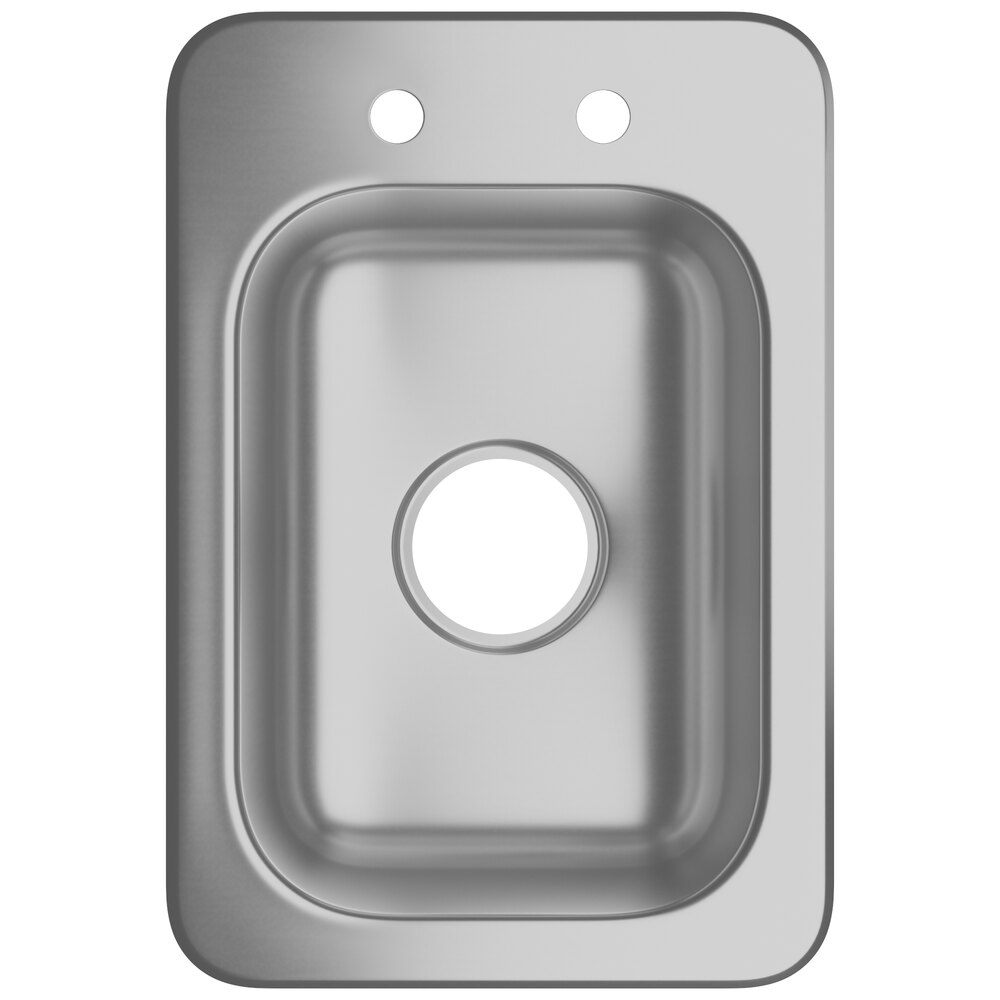

Waterloo 10" x 14" x 5" 18 Gauge Stainless Steel One Compartment Drop-In Sink

Equip your kitchen, prep area, or bar with this Waterloo 10" x 14" x 5" 18 gauge stainless steel one compartment drop-in sink. This sink features a drop-in design that fits down through the top of your counter. It has an innovative self rim design along the top to provide a professional appearance once it's installed in any countertop.

Designed for durability, corrosion-resistance, and sanitation this sink's bowl is made of seamless deep drawn 18 gauge, type 304 stainless steel with welded seams. Plus, the 3 1/2" drain with a drain opening is ready for installation so you can get your new sink up and running.

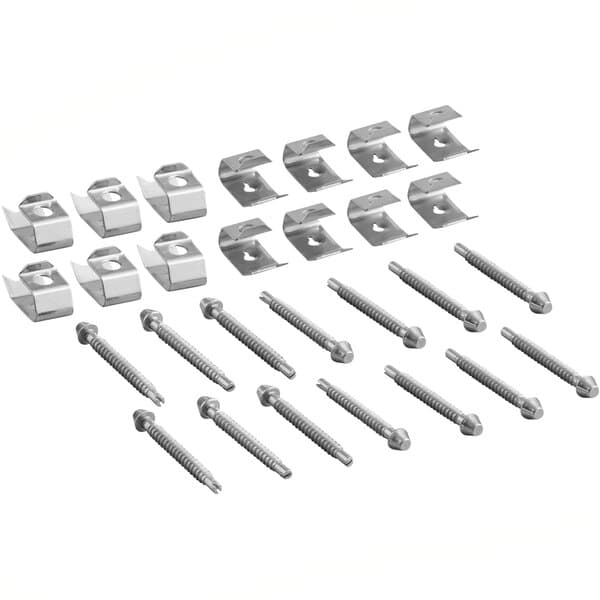

To get your sink up and running as quickly as possible, this unit comes with the required installation hardware.

Overall Dimensions:
Left to Right: 13"
Front to Back: 19"
Height: 5"

Compartment Dimensions:
Left to Right: 10"
Front to Back: 14"
Depth: 5"

Overview

Seamless deep drawn sink bowl with welded seams for easy cleaning
Innovative self rim design allows flush mounting into any countertop
10" x 14" x 5" bowl size
18 gauge, type 304 stainless steel construction
Comes with sound deadening patches to reduce ambient noise in your kitchen

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Length 13 Inches

Width 19 Inches

Height 5 Inches

Bowl Depth 5 Inches

Bowl Front to Back 14 Inches

Bowl Left to Right 10 Inches

Color Silver

Drain Opening 3 1/2 Inches

Drain Outlet Size 1 1/2 Inches

Edge Style Flush

Faucet Centers 4 Inches

Features NSF Listed

Gauge 18 Gauge

Installation Type Drop-In

Material Stainless Steel

Number of Compartments 1 Compartment

Stainless Steel Type Type 304

Type Drop-In Sinks

Resources & Downloads

Download useful documents and assets for this product.

Specsheet

Installation and Features

Download PDF (936.15 KB)

Instructions

Step-by-step installation guide

Download PDF (502.97 KB)

Warranty

Learn about Waterloo faucet coverage

Download PDF (150.36 KB)

Cut-Out Template

Additional resources for your Waterloo product

Download PDF (6.12 MB)

Customer Q&A

If you're choosing a drop-in sink, this information should be provided in the specifications for the product. The cutout must be large enough to accommodate the sink bowl(s) but also not bigger than the lip of the sink, which overhangs the cutout and holds it in place.

If you're choosing an undermount sink, the sink will install underneath the counter, so your cutout size should be about the same as the total, combined dimensions of your sink bowl(s) for a clean look. Your countertop must also have a finished edge around the cutout, since top of the bowl installs below the cut, leaving it exposed.
